Acquire · Field
Wellsite instruments
The full suite of wellsite instruments, from comprehensive mass spectrometry to basic total gas, plus elemental XRF in the field.
The full suite
Every wellsite measurement, from one provider.
We are the leaders in wellsite analysis, from comprehensive mass spectrometry to basic total gas, plus elemental XRF in the field. Spec is the flagship; the lineup covers the rest.

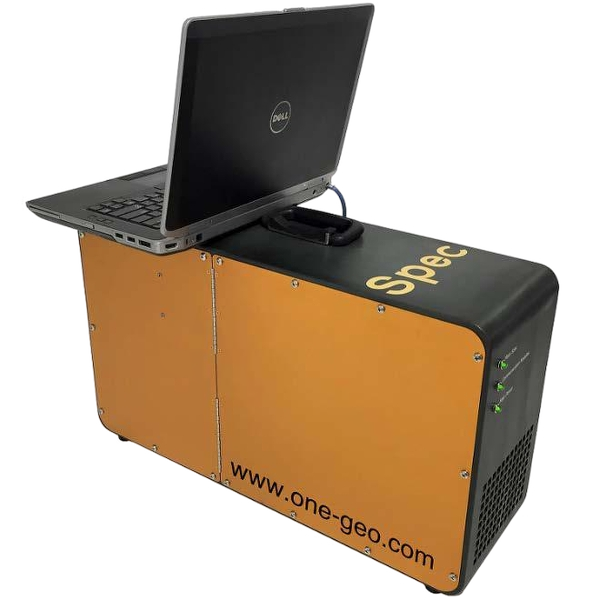

FlagshipMass spectrometerSpec
The complete gas picture, mass 2 to 140, every 40 seconds.
- Comprehensive mass spectrometry from 2 to 140 amu
- Organic, inorganic, and sulfur species in one scan
- Fully automated, WITS integrated, remotely monitored
Mid-infrared analyzerMIR
Continuous C1 to C5 hydrocarbons by mid-infrared, every 5 seconds.
- Real-time C1 to C5 measurement
- Rugged, low-maintenance optical bench
- A focused option where full-spectrum MS is not required
Gas chromatography, C1–C5GC
Chromatographic C1 to C5 analysis on a 120 second cycle.
- Chromatographic separation of C1 to C5 hydrocarbons
- A full analysis every 120 seconds
- A proven complement to the mass spectrometry suite

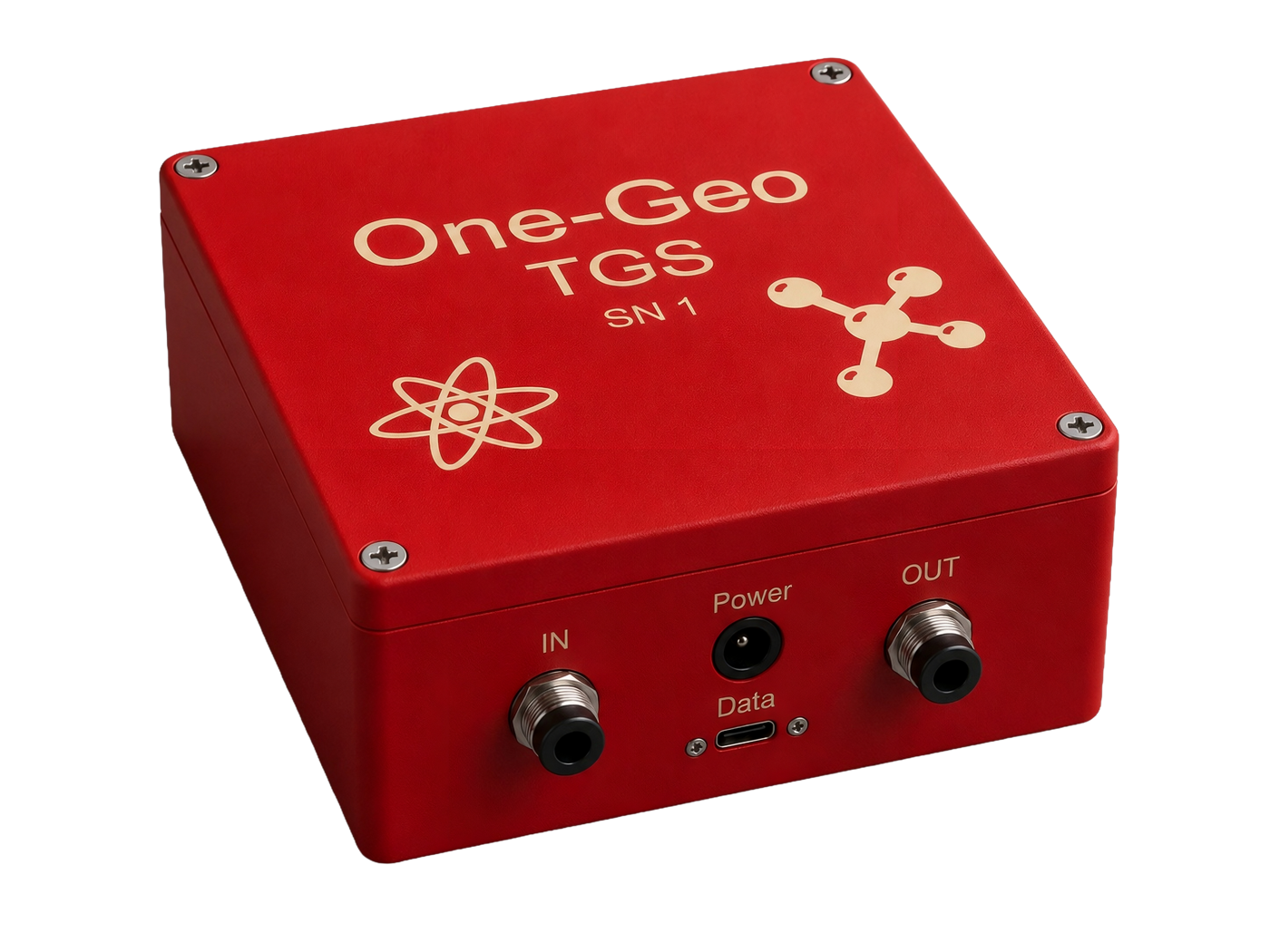

Real-time total gasTGS
Fast, reliable total gas, refreshed every second.
- Continuous total gas readout
- Simple to deploy and operate
- The dependable baseline of the gas-analysis suite

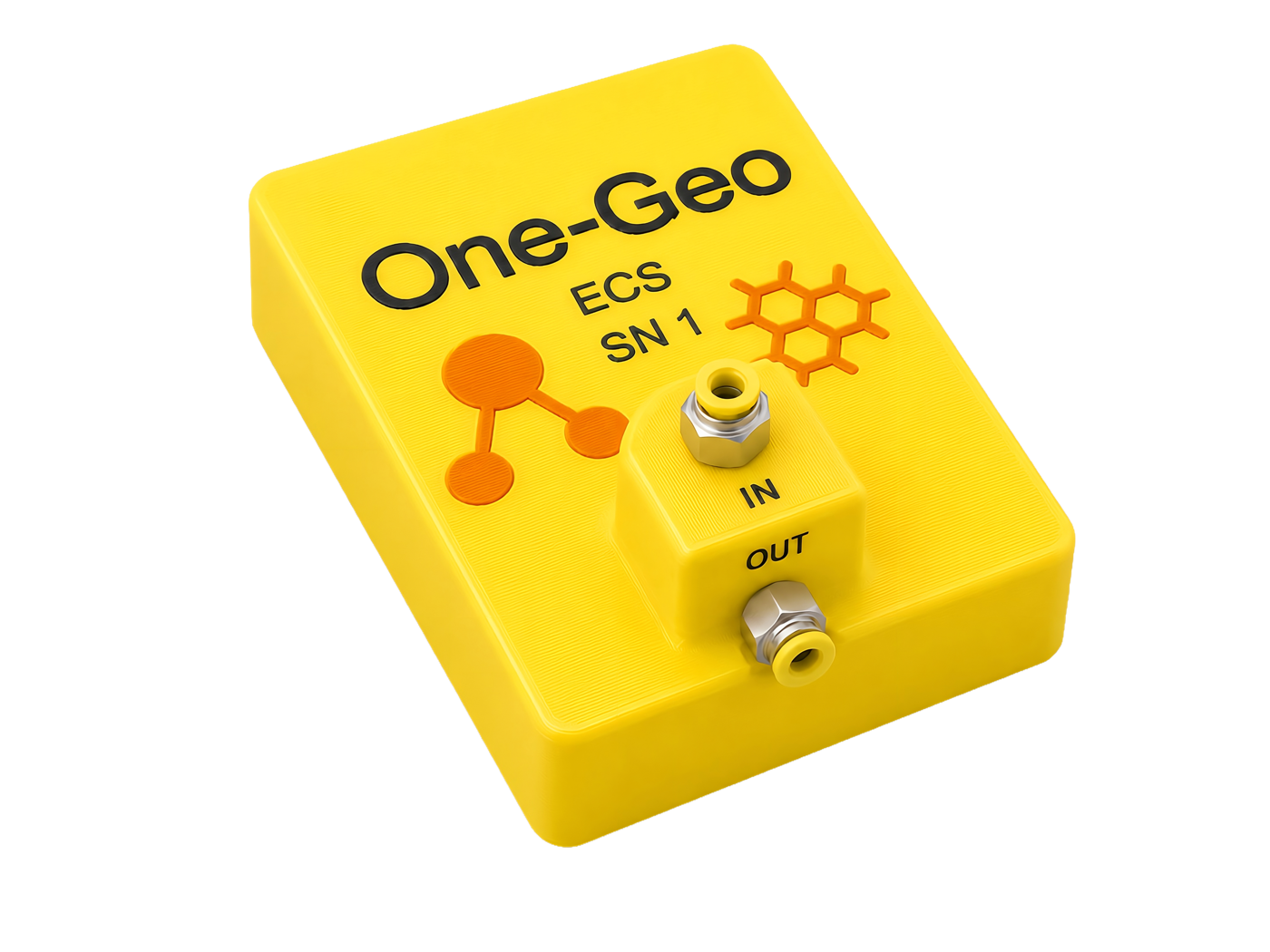

Electrochemical sensorsECS
Targeted electrochemical measurement of H₂S, H₂, CO, O₂, and NH₃.
- Targeted electrochemical sensing of H₂S, H₂, CO, O₂, and NH₃
- Runs standalone or fully integrated with the One Geo suite
- 4–20 mA analog output and USB-C data output

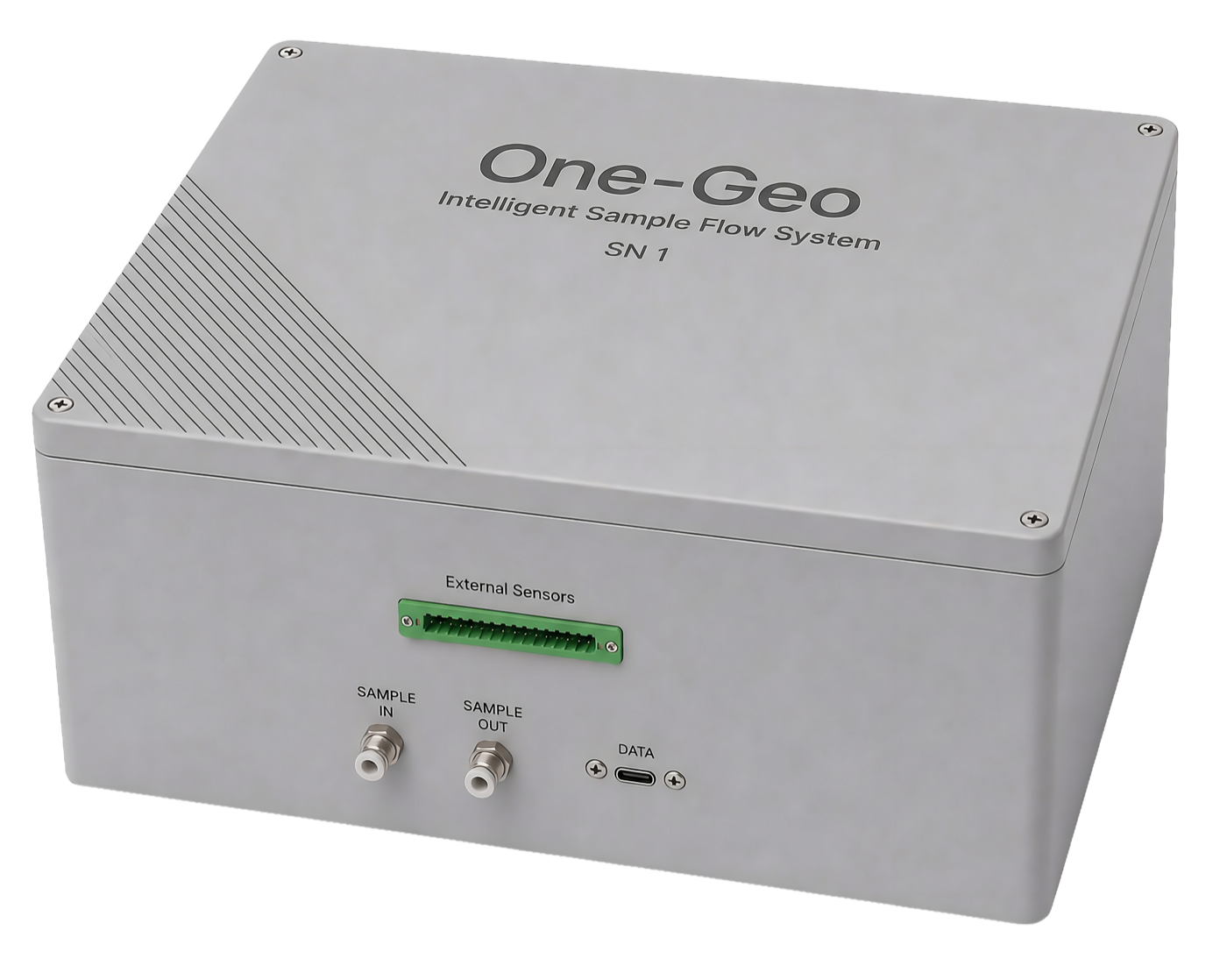

Intelligent sample flow systemFlow Box
Clean, conditioned sample delivery to every analyzer.
- Automated routing, drying, and conditioning
- Protects instruments and stabilizes readings
- Continuously evaluates extractor and line performance
XRF
Elemental composition of cuttings and cores, right at the wellsite.
- Rapid elemental chemostratigraphy on the pad
- Lithology, source rock, and completion-quality indicators
- Complete “XRF-in-a-box” rental, deployable anywhere we work
Explore the rest of the suite
One provider, the whole workflow.
Analyze · LabRock & fluid analysisLaboratory imaging, fluid inclusion geochemistry, elemental chemistry, and core analysis that turn rock into reservoir understanding.Interpret · SoftwareLive-Log platformLive-Log ties the field and the lab together, streaming, integrating, and visualizing it all in one place, in the cloud or on the desktop.
