The Mass Spectrometer for Wellsite Gas Analysis.

Spec

Spec

Mud-gas analysis is the analysis of formation fluids entrained in the drilling mud while drilling. This is a key and cost-effective piece of information for formation evaluation.

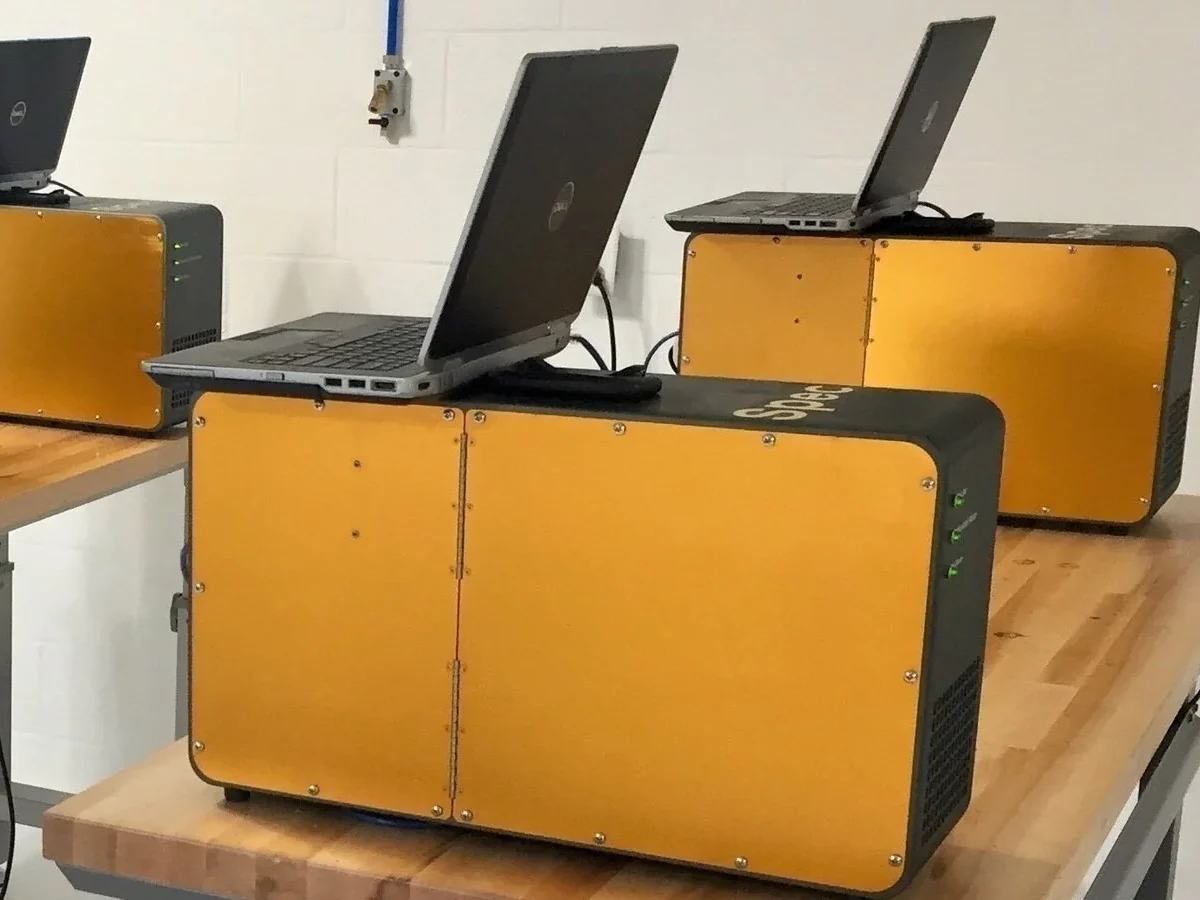

Spec is a mass spectrometer specifically designed for wellsite mud-gas analysis in real-time. Spec is a fully automated continuous-flow gas analyzer. It collects comprehensive gas data and correlates it with drilling parameters received over WITS to create a real-time depth profile. It’s easy setup, standalone and robust design, and minimal oversight requirements make it the ideal choice for gas analysis.

Applications

·   Exploration, Development, and Production

·   Conventional and unconventional resources

·   Petroleum type and quality, Geochemical fingerprinting

·   Compartmentalization, Seals, Low gas shows

·   Fluid contacts, Proximity to pay and near-miss zones, Water saturation

·   Porosity and permeability, Faults and fracture networks

·   Sweet spots in unconventionals and potential geosteering

·   Bit wear detection

·   Provide reservoir fluid composition data – can be correlated with PVT data

·   Improve well completions

·   Overpressure detection

·   Problem gas (sulfur species) detection

·   Geothermal and Helium wells

Capabilities

·   Organic species: Total gas, C1-C10 hydrocarbons; Distinguishes alkanes, cycloalkanes, and aromatics; BTEX compounds and water-soluble organic acids: Benzene, toluene, ethylbenzene, xylene, acetic acid; Standard gas ratios: Pixler, wetness, balance, character

·   Inorganic species: Hydrogen, helium, carbon dioxide, nitrogen, oxygen, argon; Sulfur species: SO/SO2, COS, CS2. H2S with external sensor.

·   Compatible with oil-based mud (OBM), water-based mud (WBM), and air drilling; Distinguishes formation gas from mud additives.

·   No chromatographic separation required.

·   No carrier gases needed, no combustion during measurement – reduces costs and improves safety. Also eliminates carrier gas and HC/CO2 interference.

·   No calibration gases needed. Semiquantitative calibration under atmospheric nitrogen. Minimal drift over months.

·   Works with various types of gas extractors, including nitrogen purged. Evaluates extractor and sample line performance.

·   Continuous self-diagnostics with visual and email/text alerts. Remote monitoring and operation over internet. Unmanned operation possible.

Specifications

·   Dimensions: 24”x7.5”x14”

·   Weight: 45lbs

·   Power: 100-240 VAC 50/60 Hz

·   Cycle Time: 70 s

·   Mass Range: 2 – 140 amu

·   Dynamic Detection Range: 100% to 10ppb

·   WITS enabled; Internet connected.

·   Data profile viewable onsite and remotely. Data output as LAS file and real-time over WITS.

·   Three 24VDC relay inputs and outputs.

·   One 4-20mA external sensor input.

·   Sample flow rate required: 2scfh or 1lpm, clean and dry.
